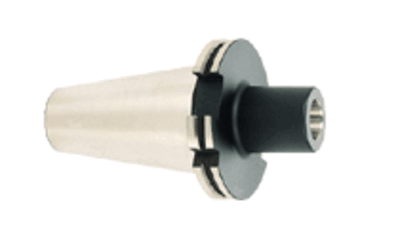

DIN6987150MT4DRW
Styckpris:
2 060 kr
- Varumärke
- Tungaloy
- Artikelnummer
- TU4540006
- Lagerstatus
Teknisk data
| Enhet | M |
|---|---|
| Applikation | | Konisk passform | |
| Måttenhet | Metrisk |
| MSDS | 7995 |
| Material | Stål |
| Body Diameter (BD) | 63 mm |
| Body Length (LB) | 50.9 mm |
| Body Length_2 (LB_2) | 15 mm |
| Connection Thread Nominal Size Workpiece Side (THSZWS) | M16 |
| Connection Retention Knob Thread Size (CRKS) | M24 |
| Overall Length (OAL) | 70 mm |
| Shank Size (SS) | 50 |
| Paketvikt | 3.78 |
| Produktslag | DIN 69871 |
Media
Produktspecifikation
| Artikelnummer | TU4540006 |
|---|---|
| EAN | 4543885691469 |
| Tillverkarens artikelnummer | 4540006 |
