Fahrion

MPC16C-HSS-AD40-A=100

  • Välj
  • FA60143331005 (MPC16C-AD40-A=100)
  • FA60143331305 (MPC16C-AD40-A=130)
  • FA60143331605 (MPC16C-AD40-A=160)
  • FA60423331005 (MPC16C-BT30-A=100 (AD))
  • FA60443331005 (MPC16C-BT40-A=100 (AD))
  • FA60443331205 (MPC16C-BT40-A=120 (AD))
  • FA60443331605 (MPC16C-BT40-A=160 (AD))
  • FA60433331005 (MPC16C-BTP30-A=100 (AD))
  • FA60453331005 (MPC16C-BTP40-A=100 (AD))
  • FA60453331205 (MPC16C-BTP40-A=120 (AD))
  • FA60453331605 (MPC16C-BTP40-A=160 (AD))
  • FA61163331005 (MPC16C-HSK-A63-A=100)
  • FA61163331305 (MPC16C-HSK-A63-A=130)
  • FA61163331605 (MPC16C-HSK-A63-A=160)
  • FA61333330555 (MPC16C-HSK-E32-A=55)
  • FA61343331005 (MPC16C-HSK-E40-A=100)
  • FA61343330555 (MPC16C-HSK-E40-A=55)
  • FA61353331005 (MPC16C-HSK-E50-A=100)
  • FA61353330605 (MPC16C-HSK-E50-A=60)
  • FA60143331006 (MPC16C-HSS-AD40-A=100)
  • FA60143331306 (MPC16C-HSS-AD40-A=130)
  • FA60143331606 (MPC16C-HSS-AD40-A=160)
  • FA60423331006 (MPC16C-HSS-BT30-A=100 (AD))
  • FA60443331006 (MPC16C-HSS-BT40-A=100 (AD))
  • FA60443331206 (MPC16C-HSS-BT40-A=120 (AD))
  • FA60443331606 (MPC16C-HSS-BT40-A=160 (AD))
  • FA60433331006 (MPC16C-HSS-BTP30-A=100 (AD))
  • FA60453331006 (MPC16C-HSS-BTP40-A=100 (AD))
  • FA60453331206 (MPC16C-HSS-BTP40-A=120 (AD))
  • FA60453331606 (MPC16C-HSS-BTP40-A=160 (AD))
  • FA61163331006 (MPC16C-HSS-HSK-A63-A=100)
  • FA61163331306 (MPC16C-HSS-HSK-A63-A=130)
  • FA61163331606 (MPC16C-HSS-HSK-A63-A=160)
  • FA61333330556 (MPC16C-HSS-HSK-E32-A=55)
  • FA61343331006 (MPC16C-HSS-HSK-E40-A=100)
  • FA61343330556 (MPC16C-HSS-HSK-E40-A=55)
  • FA61353331006 (MPC16C-HSS-HSK-E50-A=100)
  • FA61353330606 (MPC16C-HSS-HSK-E50-A=60)
Varumärke
Fahrion
Artikelnummer
FA60143331006
Lagerstatus

Beskrivning

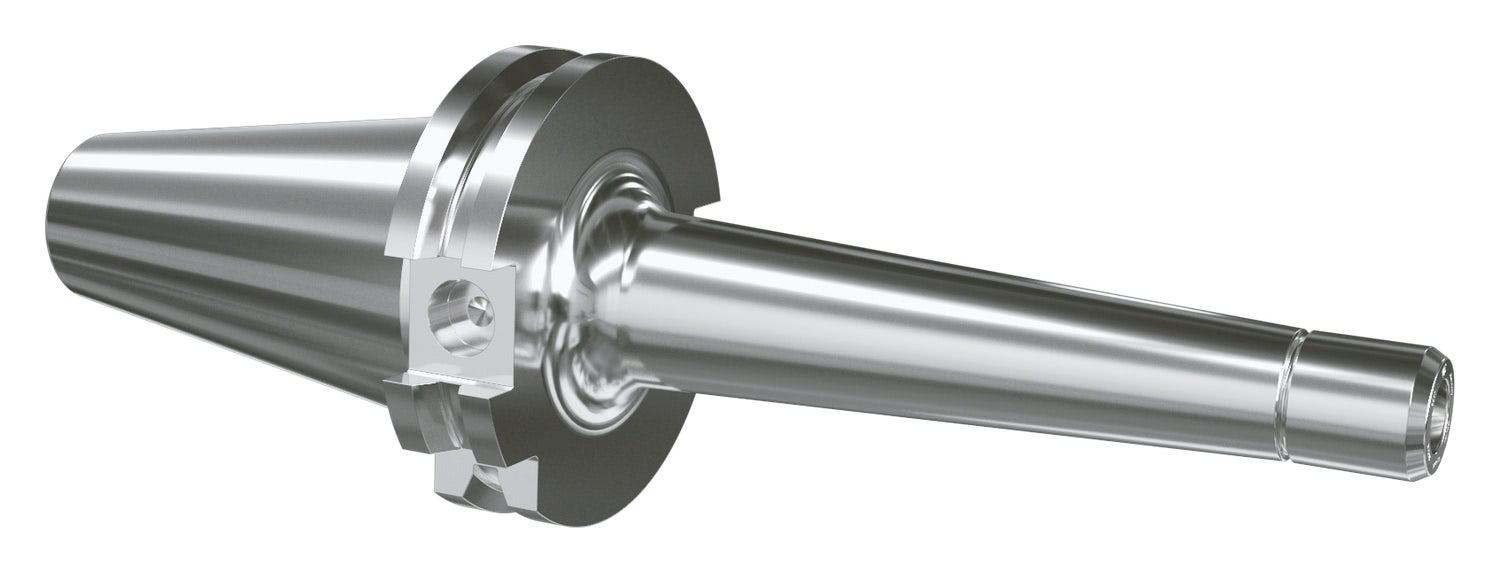

Slim precision chuck for difficult machining tasks and HSC machiningConical design for more stability

Teknisk text

Chuck body and clamping nut separately balanced G2,5 at 25.000 1/min or U ≤ 1 gmmMPC high accuracy clamping nut without clamping bridging. Concentricity of ≤ 3 µm with GERC-HP collets.

Fördelar med produkt

high runout accuracy, high speed cutting, conical, very slimhigh runout accuracy, high speed cutting, conical, very slim

Teknisk data

Tool Type ER
size of interface 40
clamping range ER16 - 1-10 mm

Produktspecifikation

Artikelnummer FA60143331006
Tillverkarens artikelnummer 60143331006
